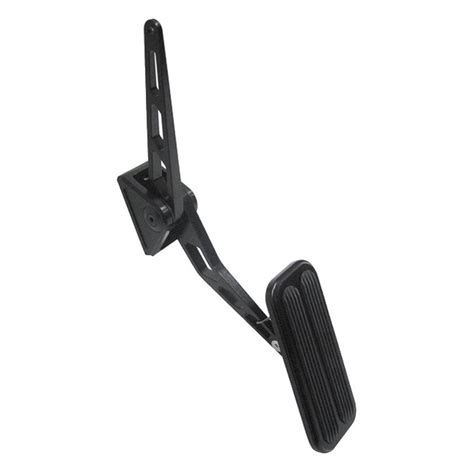

Lokar’s XBAG‑6149 is a firewall-mounted throttle pedal from the Competitor Series, featuring a vertical offset design that lowers or raises the center of the throttle assembly by 1" from the mounting plane—ideal for tighter cowl clearance or optimized driver ergonomics. The body is machined from billet aluminum and finished in black anodizing. The rectangular pad is 2″ wide and includes rubber inserts for improved grip.
A built-in spanner nut assembly allows you to adjust pedal tension and eliminates unwanted movement. The lower arm is splined with a ¾″ x 48 tooth steel insert, offering infinite clocking adjustment and the option to reverse the arm for left- or right-side installation. Delrin bushings ensure long-term, quiet, and friction-free operation.
• Pedal type: Throttle
• Series: Competitor
• Mount: Firewall, vertical offset, will raise or lower the center of the throttle assembly an entire inch
• Construction: Billet aluminum
• Finish: Black
• Pedal pad: 2″ wide with molded rubber insert
• Arm: Reversible splined lower arm
• Insert: ¾″ x 48 tooth fine-spline steel
• Tension system: Built-in spanner nut
• Bearings: Delrin bushings
